You can flip through the table. (left / right)
| Characteristic | А2-ПСП- 40 |
А2-ПСП- 60 |
А2-ПСП- 85 |
А2-ПСП- 125 |
А2-ПСП- 180 |
А2-ПСП- 240 |
А2-ПСП- 300 |
|---|---|---|---|---|---|---|---|
| Technical productivity for juice, м³/h | 115 | 170 | 250 | 340 | 450 | 600 | 750 |
| Heat transfer surface area, m² | 40 | 60 | 85 | 125 | 180 | 240 | 300 |
| Max. t° of heating the juice, С° | 129 | 129 | 129 | 129 | 115 | 115 | 115 |
| Overall dimensions, mm | 2500 ×1400 ×6500 | 2520 ×1430 ×6800 | 3500 ×1930 ×7100 | 4200 ×2220 ×7800 | 4460 ×2420 ×8100 | 4460 ×2420 ×8100 | 4635 ×2540 ×8500 |
| Weight, kg | 3500 | 4000 | 5900 | 6600 | 11470 | 12900 | 13900 |

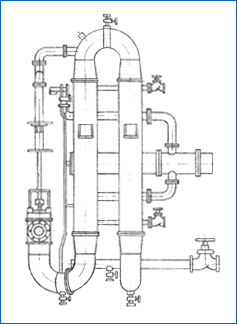

sectional type "condensate-juice"
You can flip through the table. (left / right)
| Characteristic | А2-ПТС- 20 |
А2-ПТС- 40 |
А2-ПТС- 60 |
А2-ПТС- 80 |
А2-ПТС- 120 |
А2-ПТС- 180 |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| дифф. / деф. сок | дифф. сок | дефек. сок | дифф. сок | дифф. сок | дефек. сок | дифф. сок | дефек. сок | дифф. сок | дефек. сок | дефек. сок |
| Maximum beet productivity of the plant, t/day | до 1500 | до 1500 | 2000 | 3000 | 2000 | 4500 | 3000 | 6000 | 4500 | 6000 |
| Technical productivity for juice, m³/h | 75 | 150 | 100 | 150 | 200 | 225 | 300 | 300 | 450 | 600 |
| Juice speed, m/s | 2,7 | 3,0 | 2,0 | 3,0 | 2,6 | 2,9 | 3,0 | 3,0 | 2,9 | 2,5 |
| Heat transfer surface area, m² | 20 | 40 | 40 | 40 | 60 | 60 | 80 | 80 | 120 | 180 |
| Working pressure, MPa (kgf/cm²) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) | 0,589 (6,0) |
| Technical consumption of condensate, kg/h | 45000 | 90000 | 60000 | 90000 | 135000 | 135000 | 180000 | 180000 | 270000 | 360000 |
| Footprint, m² | 2,81 | 2,88 | 2,88 | 2,88 | 4,20 | 4,20 | 4,83 | 4,83 | 5,85 | 8,29 |
| Weight, kg | 2100 | 2100 | 2800 | 2800 | 3800 | 3800 | 4800 | 4800 | 5900 | 9100 |
